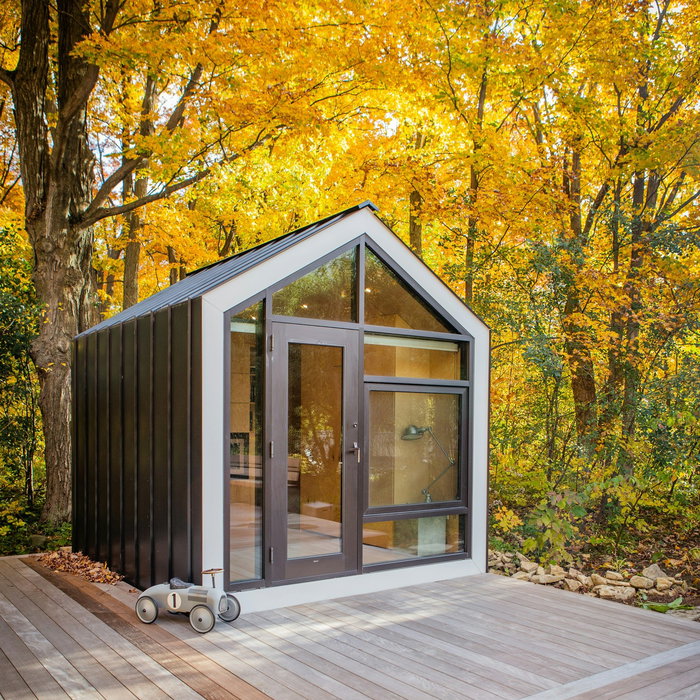

Monarch 160
Starting at
Like a Tiny House, Sleeps 2-4
160 Square Feet
1/2, 1, 2 Large Glass Walls
Gable Roof
Tiny space to the Max! This larger Monarch model uses extra prefab modules to stretch the standard Monarch to 160 sqft in various US and CDN regions where larger no building permit structures are allowed. This size lets you really let loose on creating your ideal flex space. Optional partition walls with sliding barn door can divide the space up and create a privacy for a composting toilet or extra storage.
Features & Specifications
Dimensions
160 Square Feet
Exterior: 12′-6″W x 12′-9″D x 11′-6″H
Interior: 11′-4″W x 11′-7″D x 10′-4″H
Standard Features and Specs
Front Glass Wall with Door and Awning Window
Standing Seam Steel Metal Cladding with Full Weather Membranes
Dual Passive Air Flow Vents (installed onsite)
R24 Insulated Walls and Floor with 6mil Poly Barrier. R21 Rigid Insulation in Roof
8 Flush Mount 4โ LED Pot Lights (Hardwired)
UV Coated Maple Veneer Plywood Interior Panels (grain variation and knots are visible)
Optional Features
Half Glass Wall
Partition Wall
Front Door Screen
Side Windows in 4 zones (with screen)
6 puck 12v LED Lighting System (Off-grid use)
Queen or Double Wall Bed (can fit 1-2 beds)
Luxury Vinyl Engineered Flooring
Engineered Maple Hardwood Flooring
Modular Cabinets (drawers, fireplace, storage)
Accessories (furniture, blinds, desks, chairs)
Glass Wall Configurations
Standard Left Door Glass Wall with Awning

Door: 32″ x 80″ Awning window: 43″ x 38″
Standard Right Door Glass Wall with Awning

Awning window: 43″ x 38″ Door: 32″ x 80″
Optional Back Glass Wall with Awning

Awning window: 43″ x 38″
Optional Left Slider with Awning Window

Sliding door: 43″ x 80″ Awning window: 43″ x 38″
Optional Right Slider with Awning Window

Awning window: 43″ x 38″ Sliding door: 43″ x 80″
Optional Left Slider with no Awning Window

Sliding door: 43″ x 80″
Optional Right Slider with no Awning Window

Sliding door: 43″ x 80″
Optional 4-Panel Slider

Configuration Feature Here
Side Window Configurations

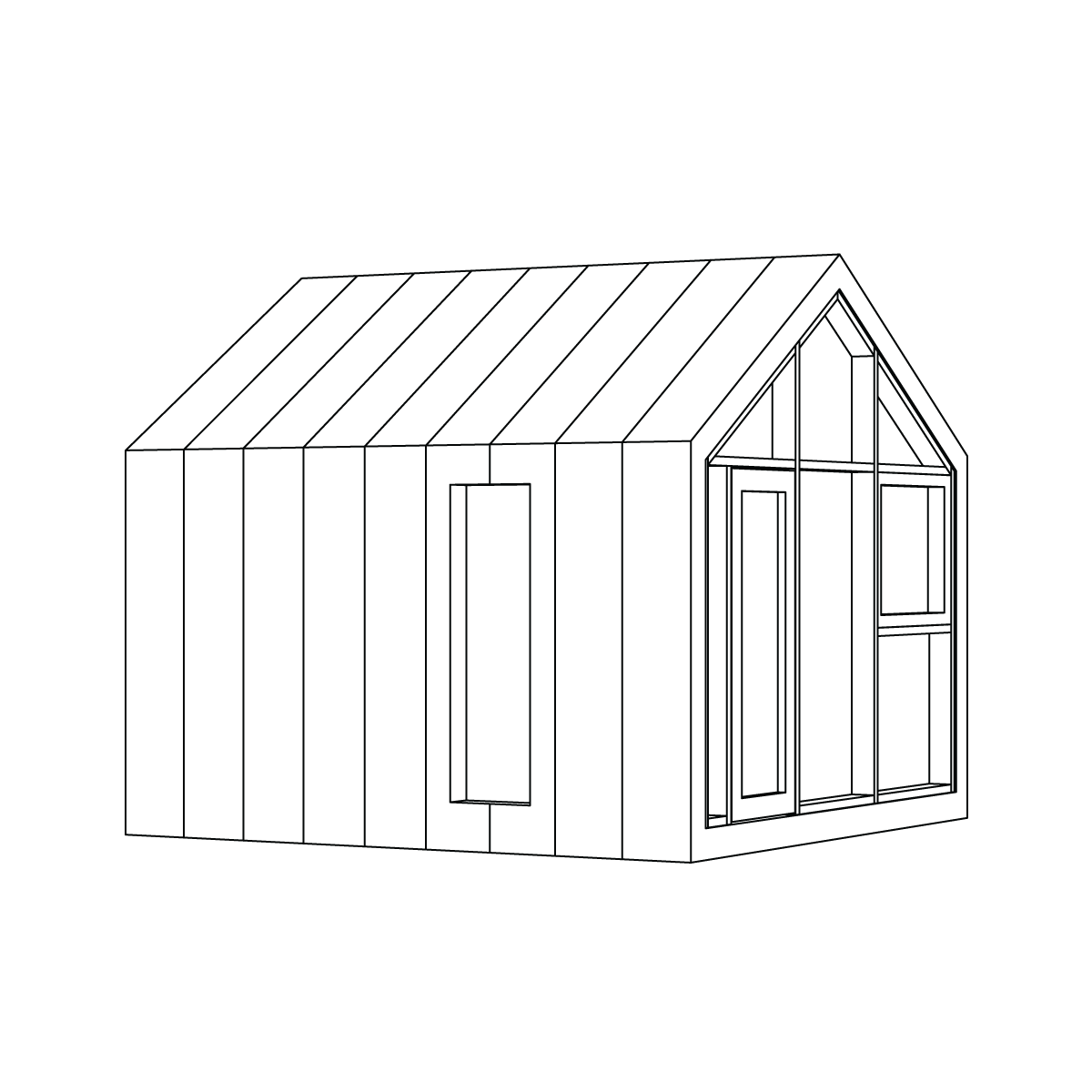

Optional front left facing window (zone 1)

21โW x 72โH with screen

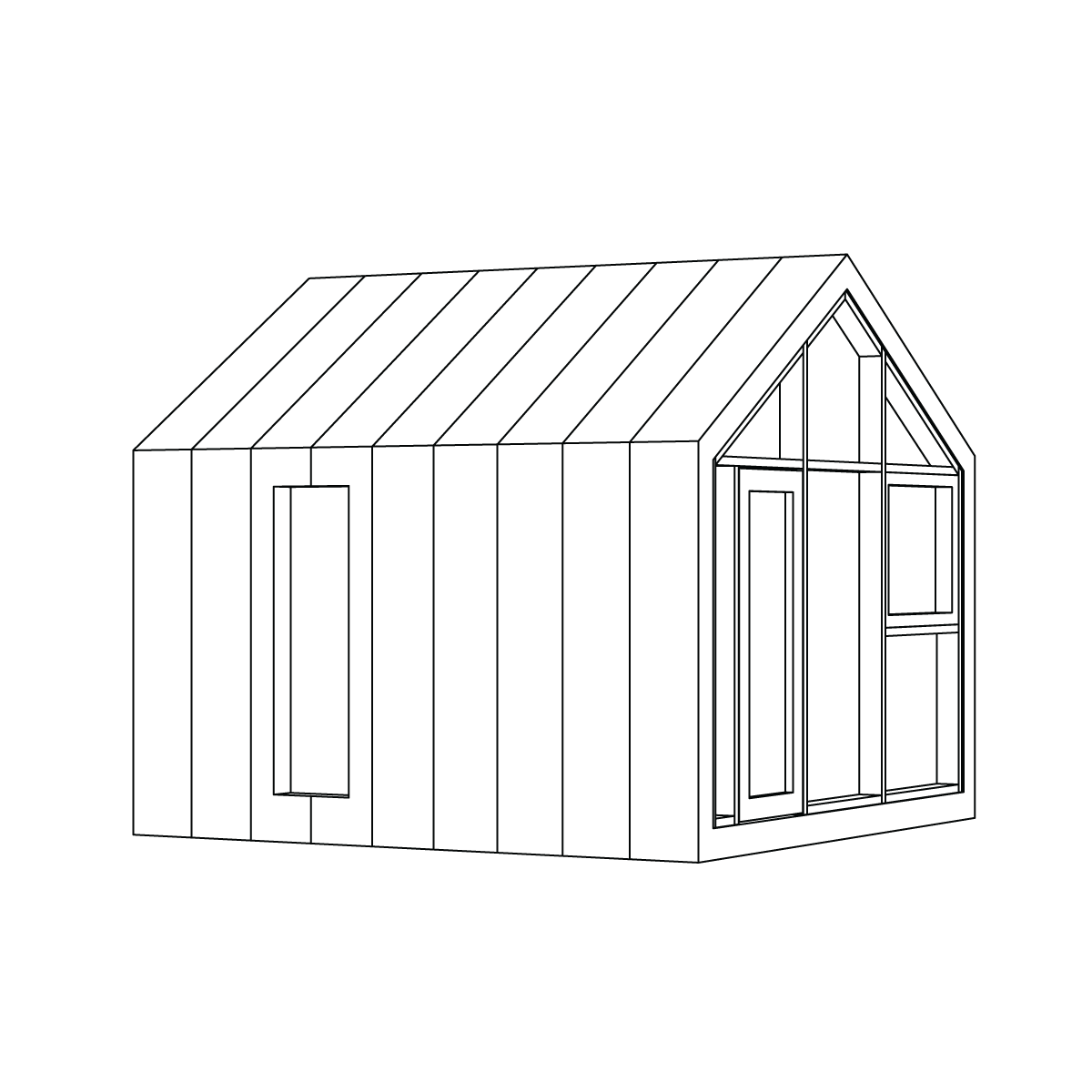

Optional back left facing window (zone 2)

21โW x 72โH with screen

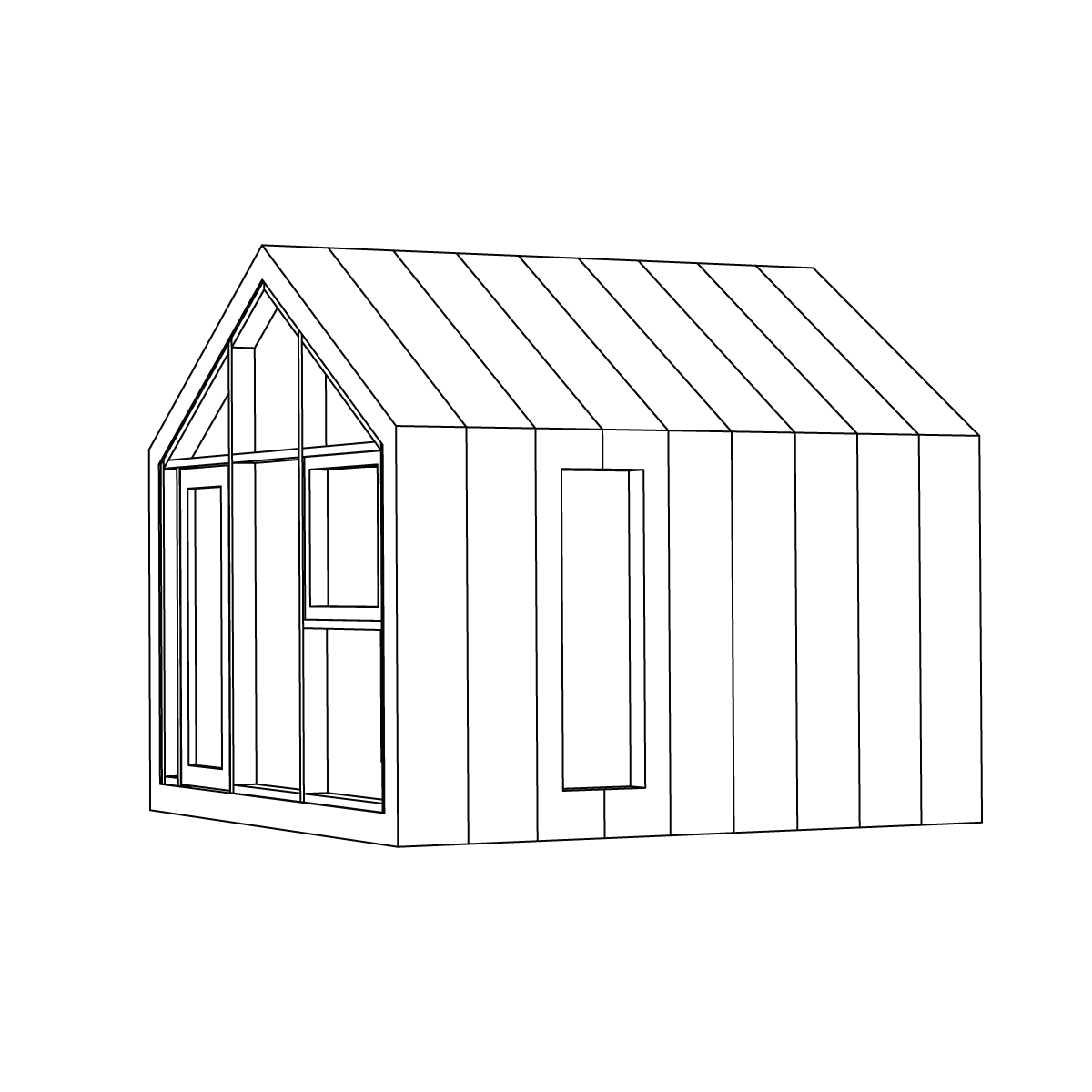

Optional front right facing window (zone 3)

21โW x 72โH with screen

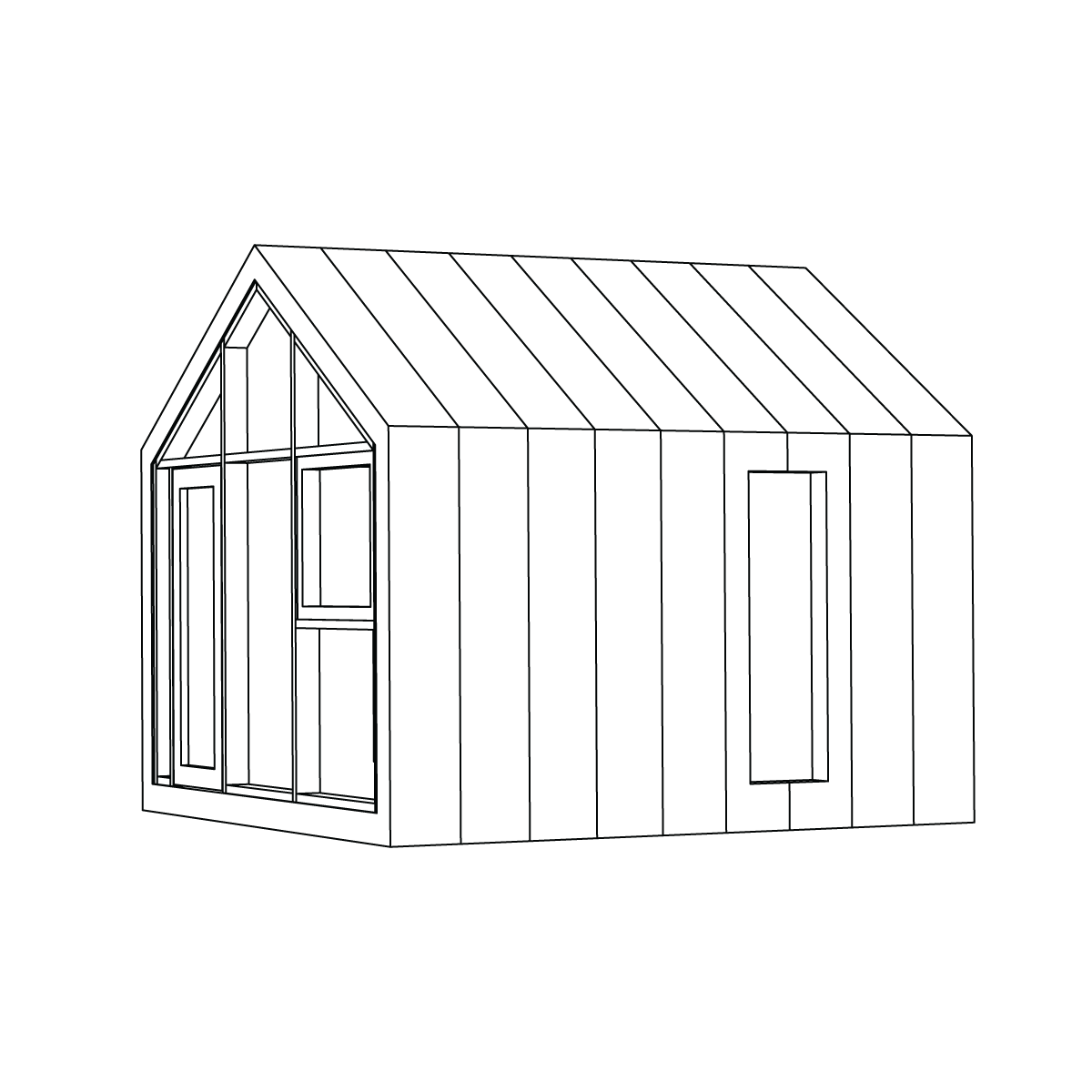

Optional back right facing window (zone 4)

21โW x 72โH with screen
Layout Options

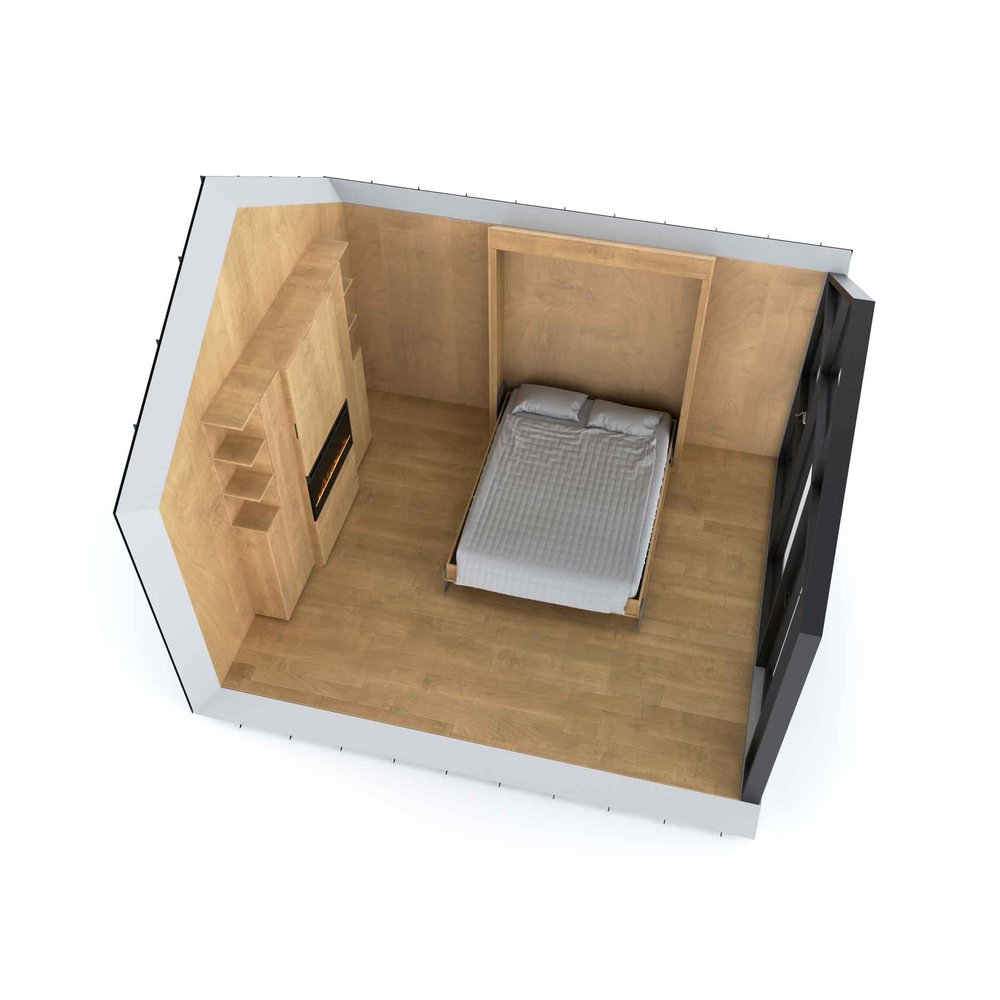

Vertical Queen Wall Bed

Vertical Queen Wall Bed + Cabinets

Vertical Queen Wall Bed + Cabinets

Horizontal Queen Wall Bed + Desk

Horizontal Queen Wall Bed

Vertical Queen Wall Bed +Partition Wall + Desk
Metal Cladding Options

Black

Charcoal

White

Regent Grey

Bright Red

Dark Red

Iron Ore

Dark Brown

Coffee Brown

Melchers Green

Dark Graphite

Heron Blue
Blinds

Left Facing Door + Awning Window

Right Facing Door + Awning Window

Back Glass + Left Facing Awning Window

Back Glass + Right Facing Awning Window

Left Slider + Awning Window

Right Slider + Awning Window

Left Slider Only

Right Slider Only

4 Panel Slider

Standard Back Glass
Flooring

Engineered Maple

Luxury Vinyl Maple

Engineered example
Make it Yours

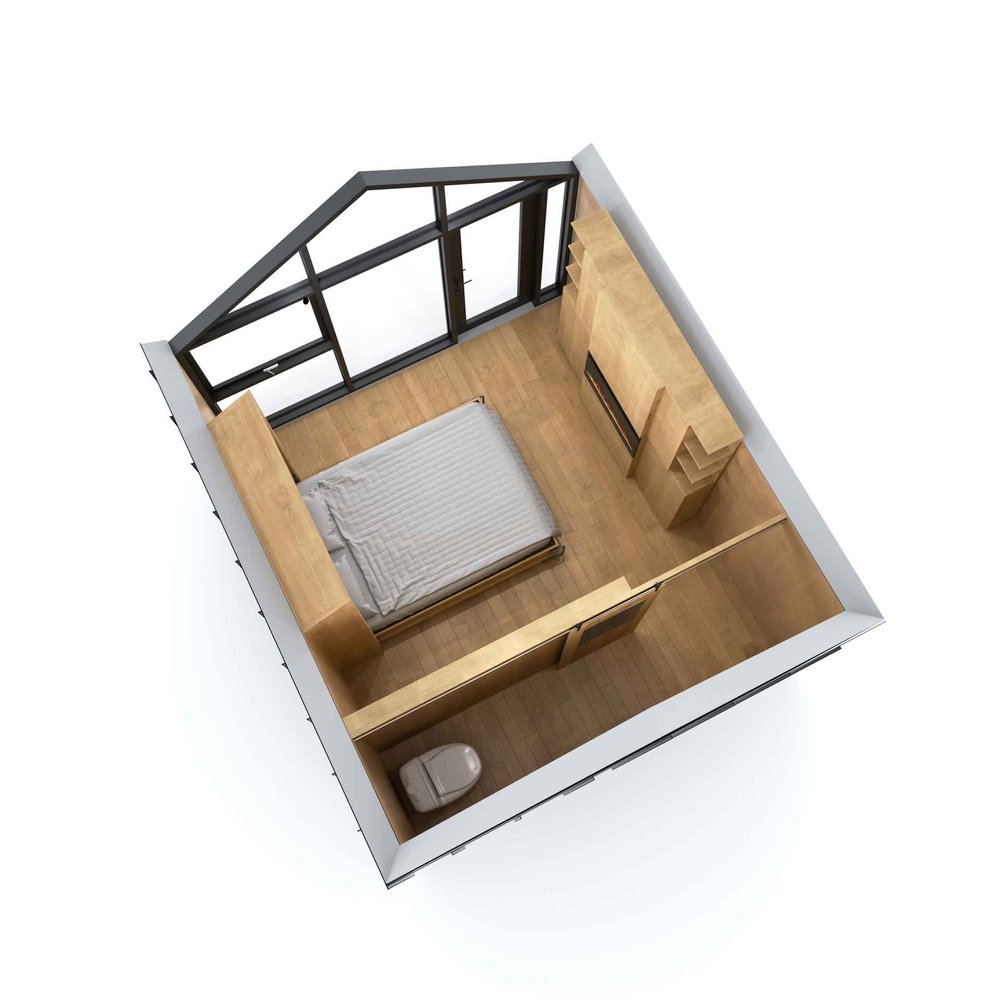

Vertical Queen Wall Bed + Cabinets + Partition Wall
