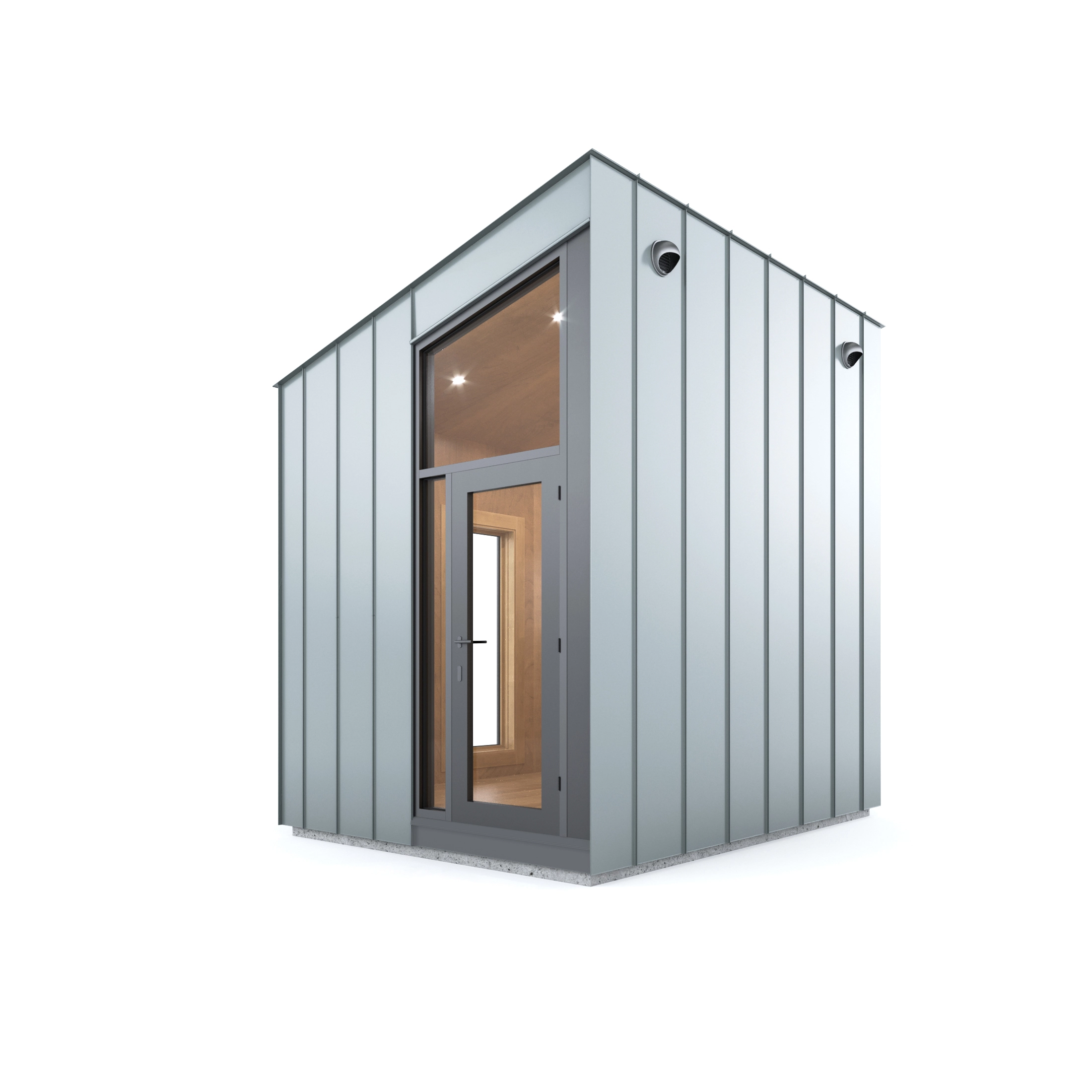

Alpine 155
Starting at
Stack 'em, Can sleep 4
155 Square Feet
1 Half Glass Wall
Single Pitch Roof
A tiny but towering example of ultra space efficiency. We can fit four full size humans with the optional upper platform and standard queen sized wall beds. A great little functional loft area, accessible by heavy duty steel ladder with wood guard rails, for safety.
The lower horizontal queen bed folds clean out of the way to make room for family dance parties or a serious game of Euchre. There is still just enough room for a fireplace and additional cubbie storage for extended weekend guests.
Features & Specifications
Dimensions
155 Square Feet
Exterior: 8′-10″W x 17′-8″D x 12′-2″H
Interior: 7′-8″W x 16′-6″D x 11′-0″H
Layout Options
Loft with Ladder
Loft with lower Queen Bed
Standard Features and Specs
Standard Glass Door with Back Window
Standing Seam Steel Metal Cladding with Full Weather Membranes
Dual Passive Air Flow Vents (installed onsite)
R24 Insulated Walls and Floor with 6mil Poly Barrier. R21 Rigid Insulation in Roof
4 Flush Mount 4” LED Pot Lights (Hardwired)
UV Coated Maple Veneer Plywood Interior Panels (grain variation and knots are visible)
Optional Features
Front Door Screen
Side Window (with screen)
6 puck 12v LED Lighting System (Off-grid use)
Queen or Double Wall Bed
Queen Loft Bed with Ladder
Queen Loft Bed 2 puck 12v LED Lighting System
Luxury Vinyl Engineered Flooring
Engineered Maple Hardwood Flooring
Modular cabinets (drawers, fireplace, storage)
Accessories (furniture, blinds, desks, chairs)
Window Configurations
Standard rear awning window
29”W x 32”H with screen

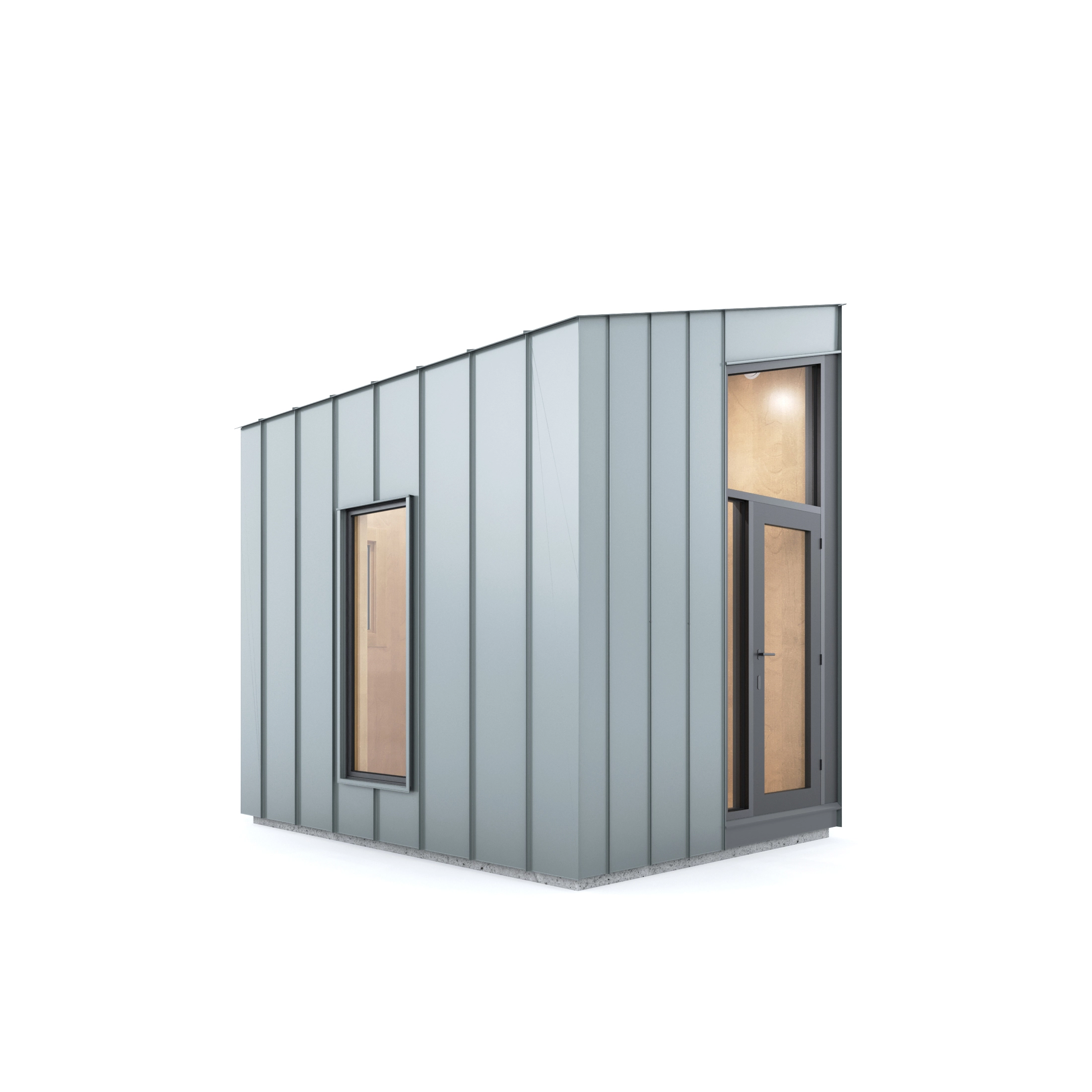

Optional side casement window
29”W x 72”H with screen

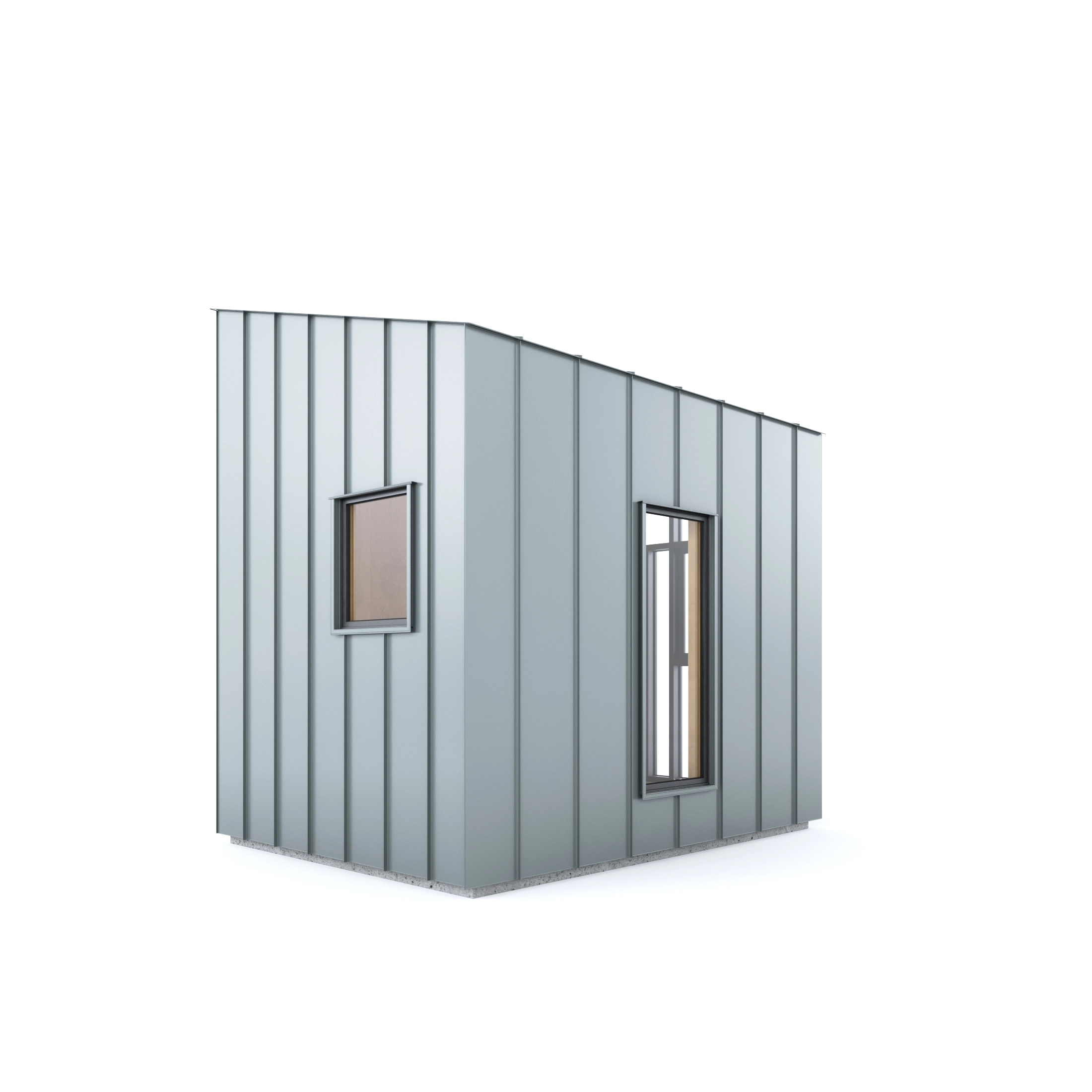

Standard rear awning window + optional side window
29”W x 32”H + 29”W x 72”H
Metal Cladding Options
Black
Charcoal
White
Regent Grey
Bright Red
Dark Red
Iron Ore
Dark Brown
Coffee Brown
Melchers Green
Dark Graphite
Heron Blue
Blinds
Standard Door
Flooring
Engineered Maple
Luxury Vinyl Maple
Engineered example
Make it Yours

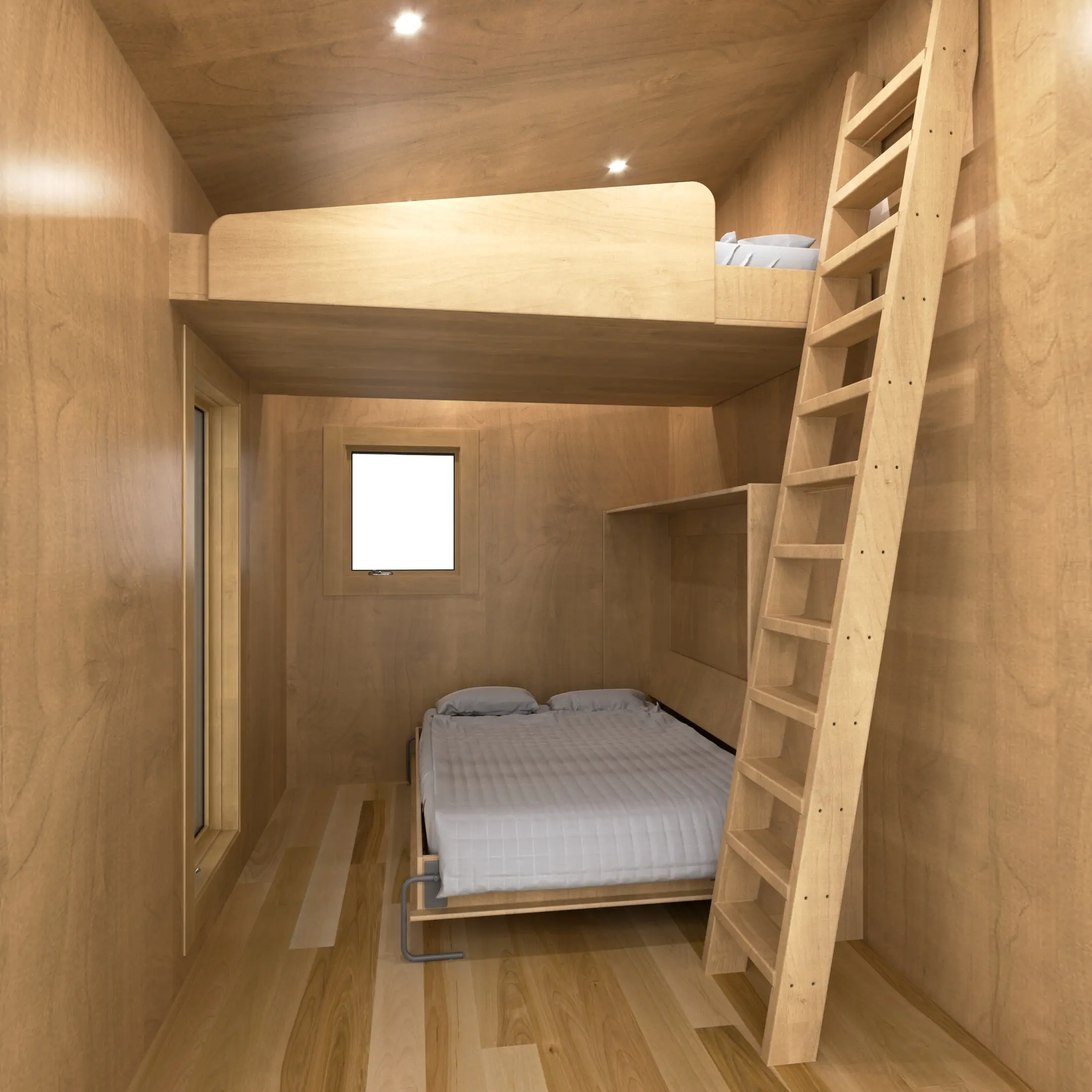

Upper Loft with Lower Queen Horizontal wall bed

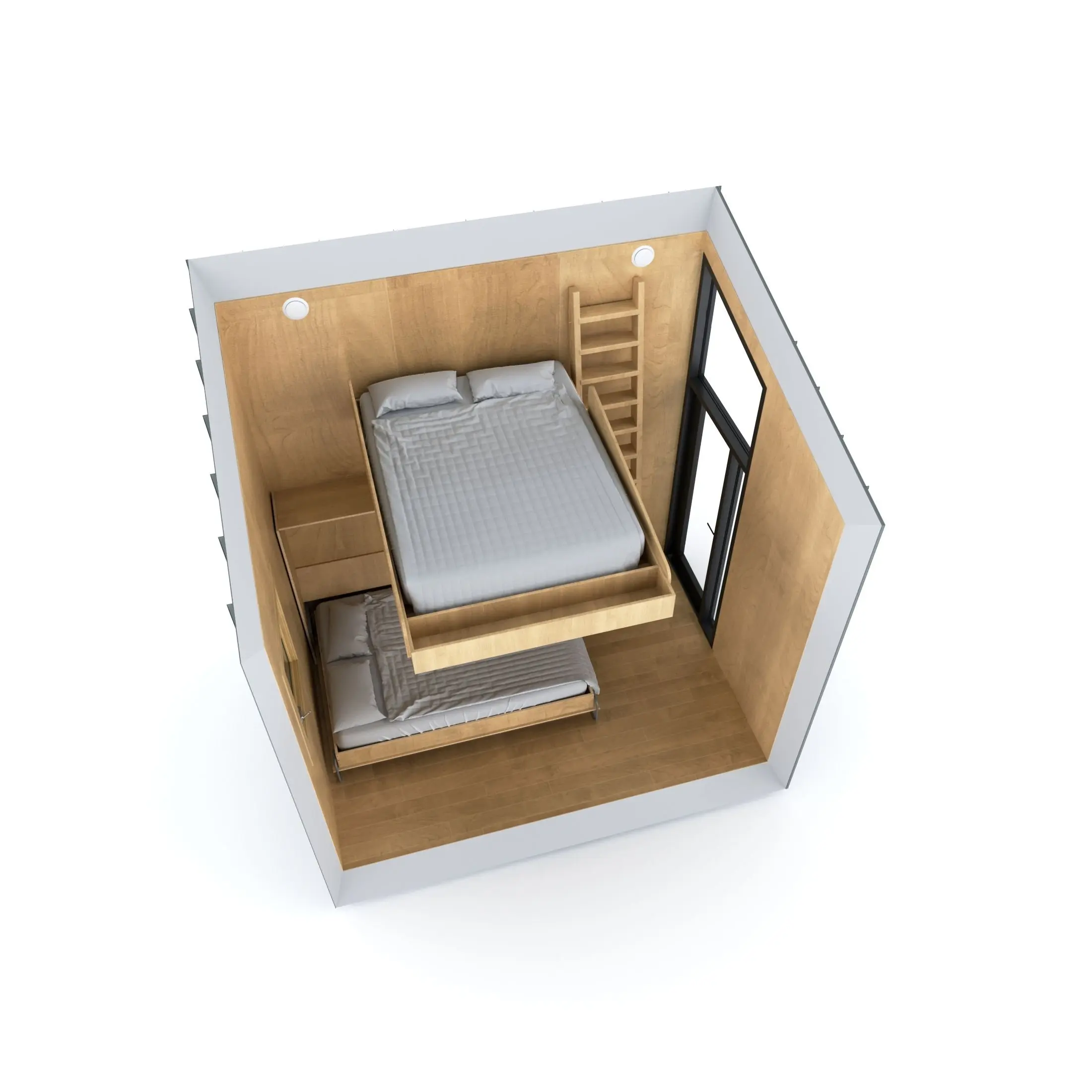

Upper Queen Loft Bed
